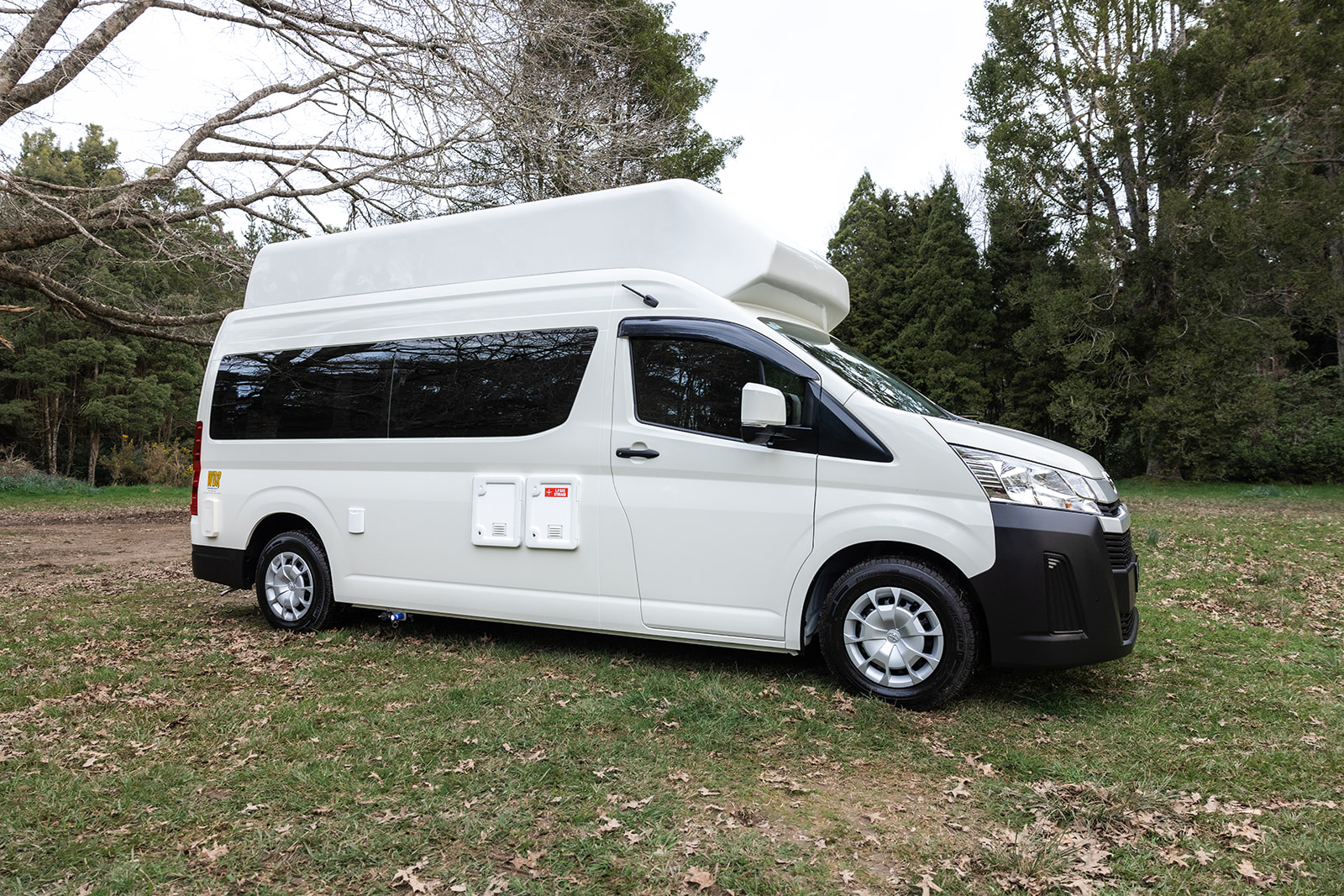

Toyota HiAce Generation 6 ZX Jumbo
Introducing the latest Gen 6 Hiace conversion from WBR, a fully self-contained campervan that combines Toyota’s renowned reliability with a 5-star safety rating. This camper offers exceptional comfort, value, and dependability, providing impressive value for your investment.
CAMPERVAN LAYOUT
The campervan kit can be installed in both new and pre-owned Toyota HiAce Gen 6. We offer the option to supply a van for you, or you can bring your own vehicle to us for the installation. The Generation 6 model is a 2.8L turbo diesel in 2WD (rear wheel drive) We can supply you a brand-new Gen 6 Toyota Hiace.

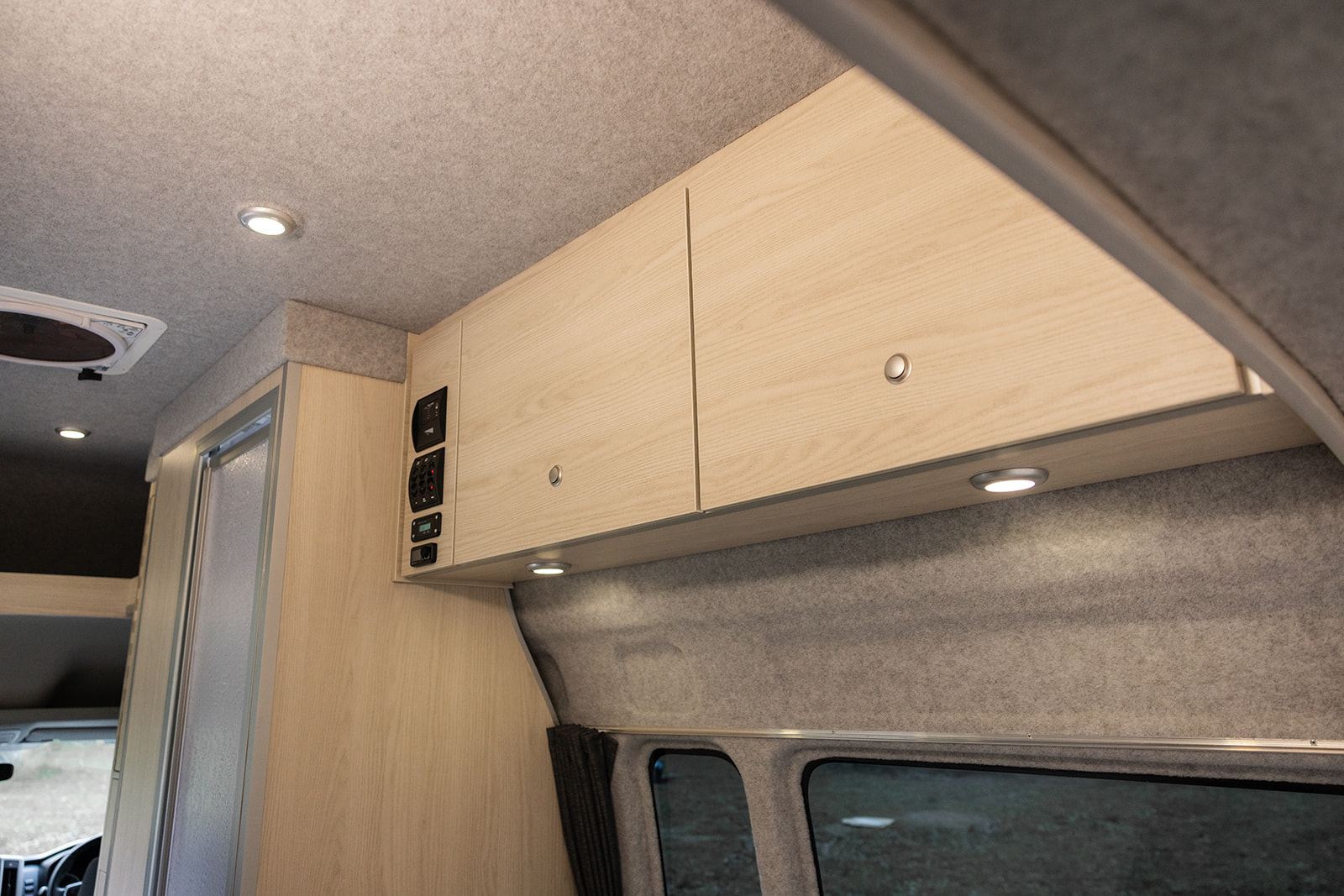

This conversion accommodates 2 people with walk through, rotating passenger seat, and includes spacious front overhead storage and lockers. The camper kit features a fully self-contained shower and toilet module.

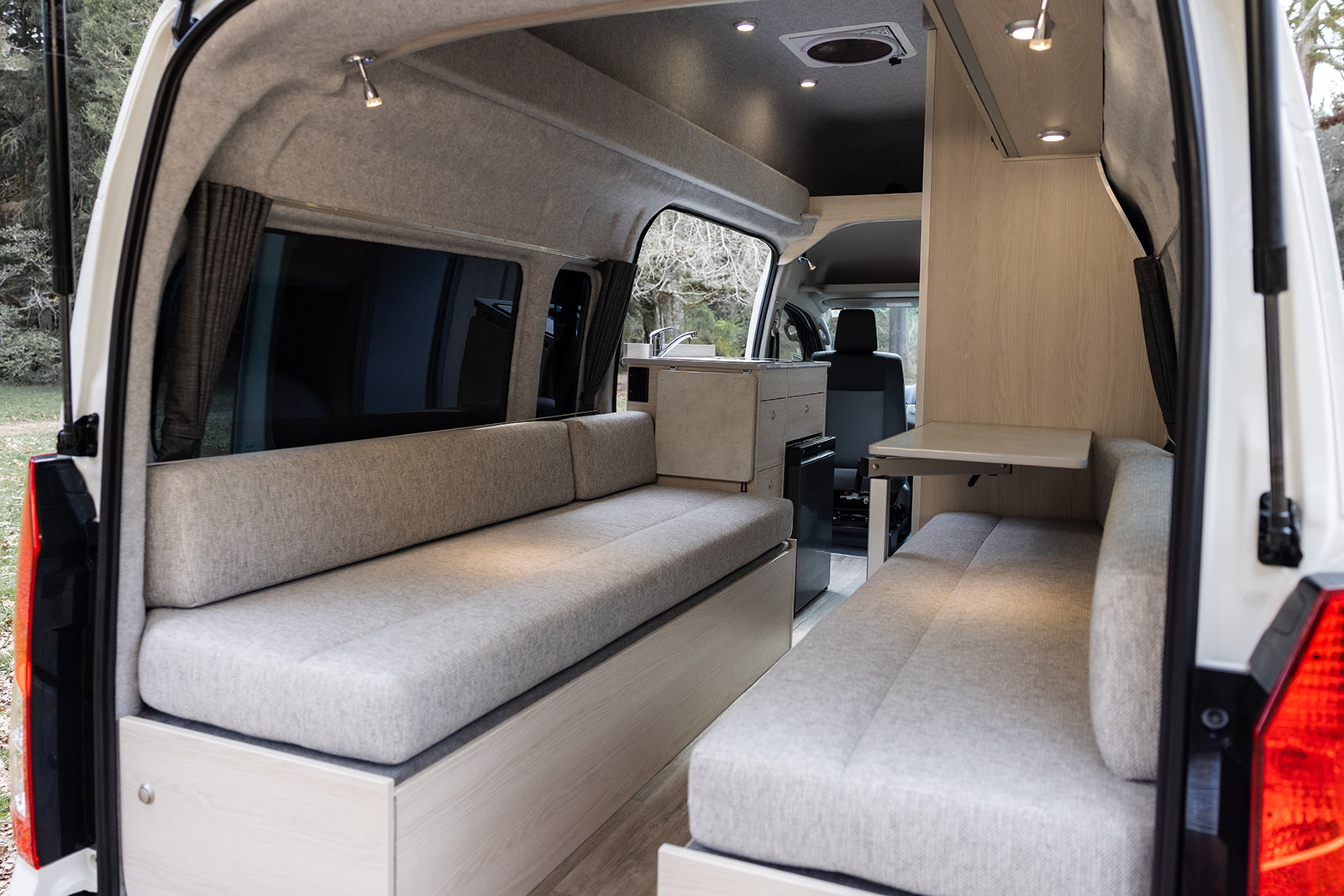

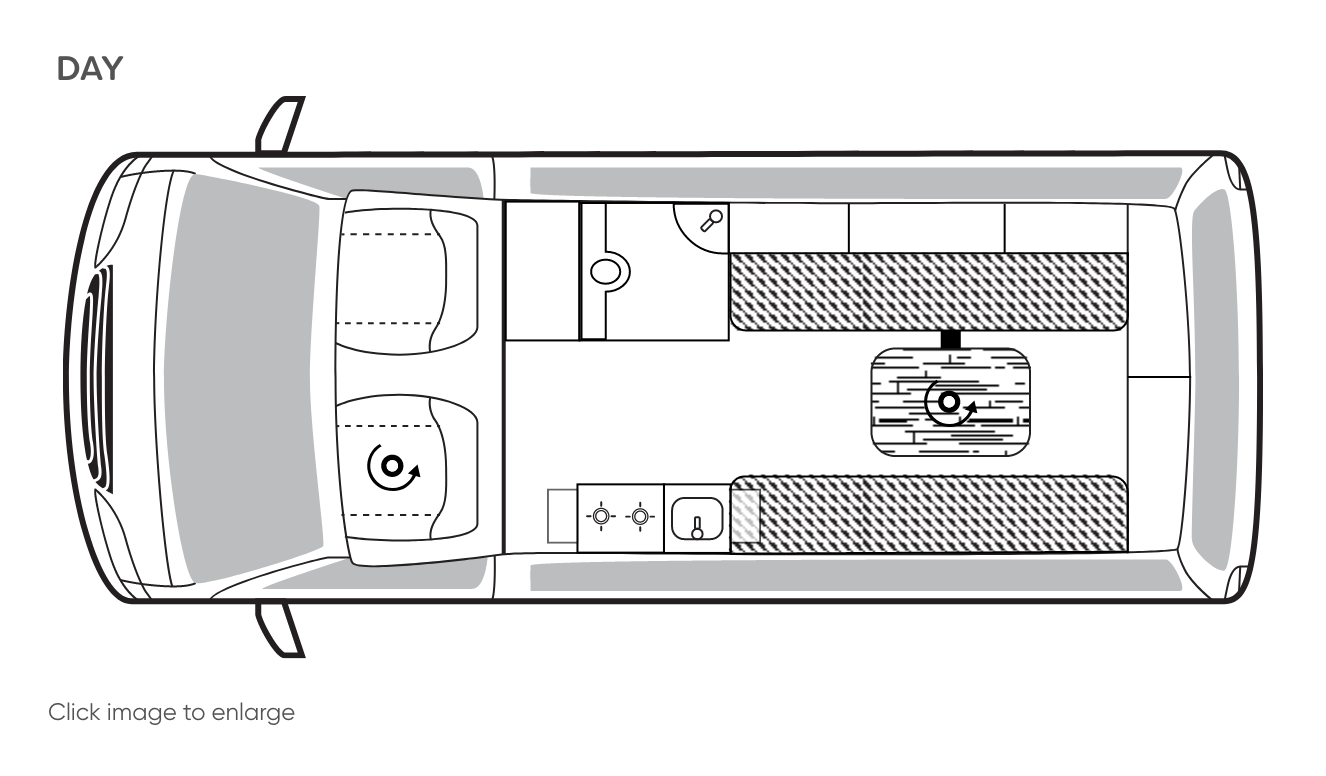

Gen 6 Shower Day Layout

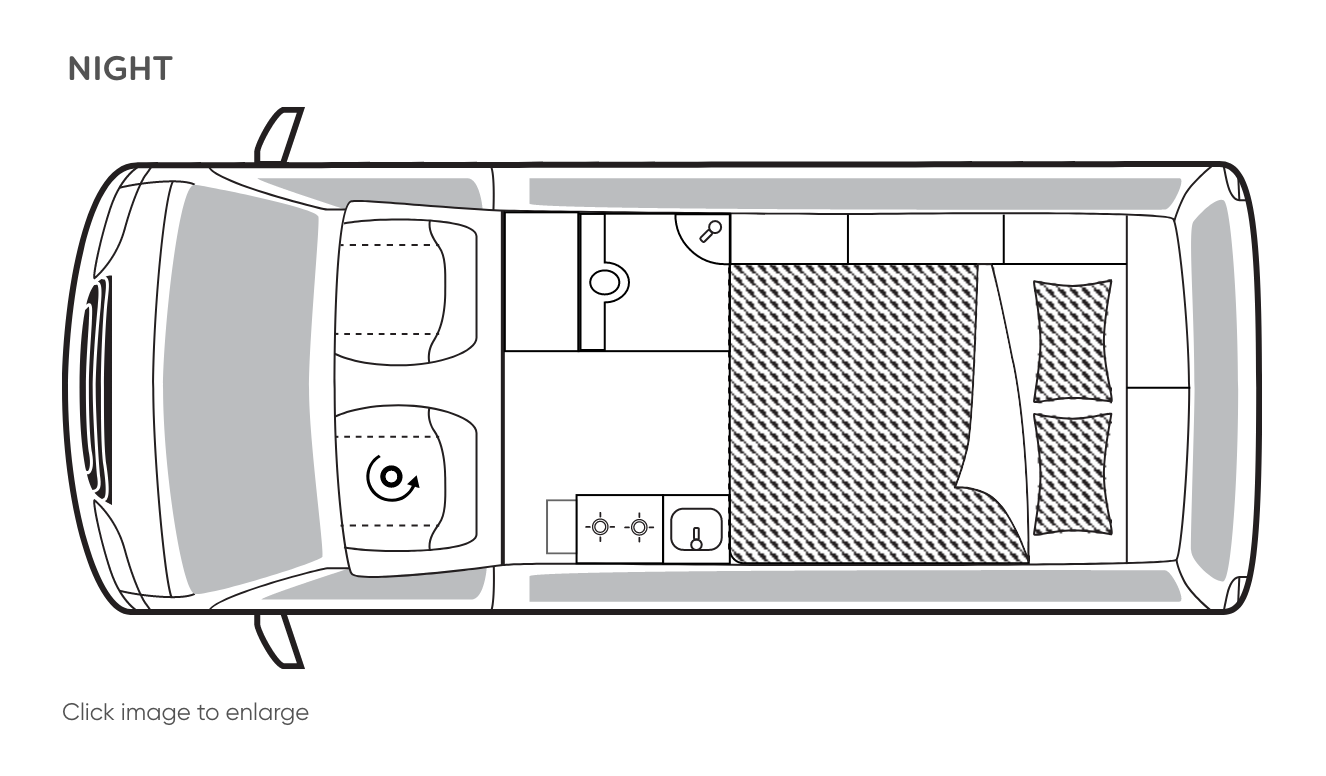

Gen 6 Shower Night Layout

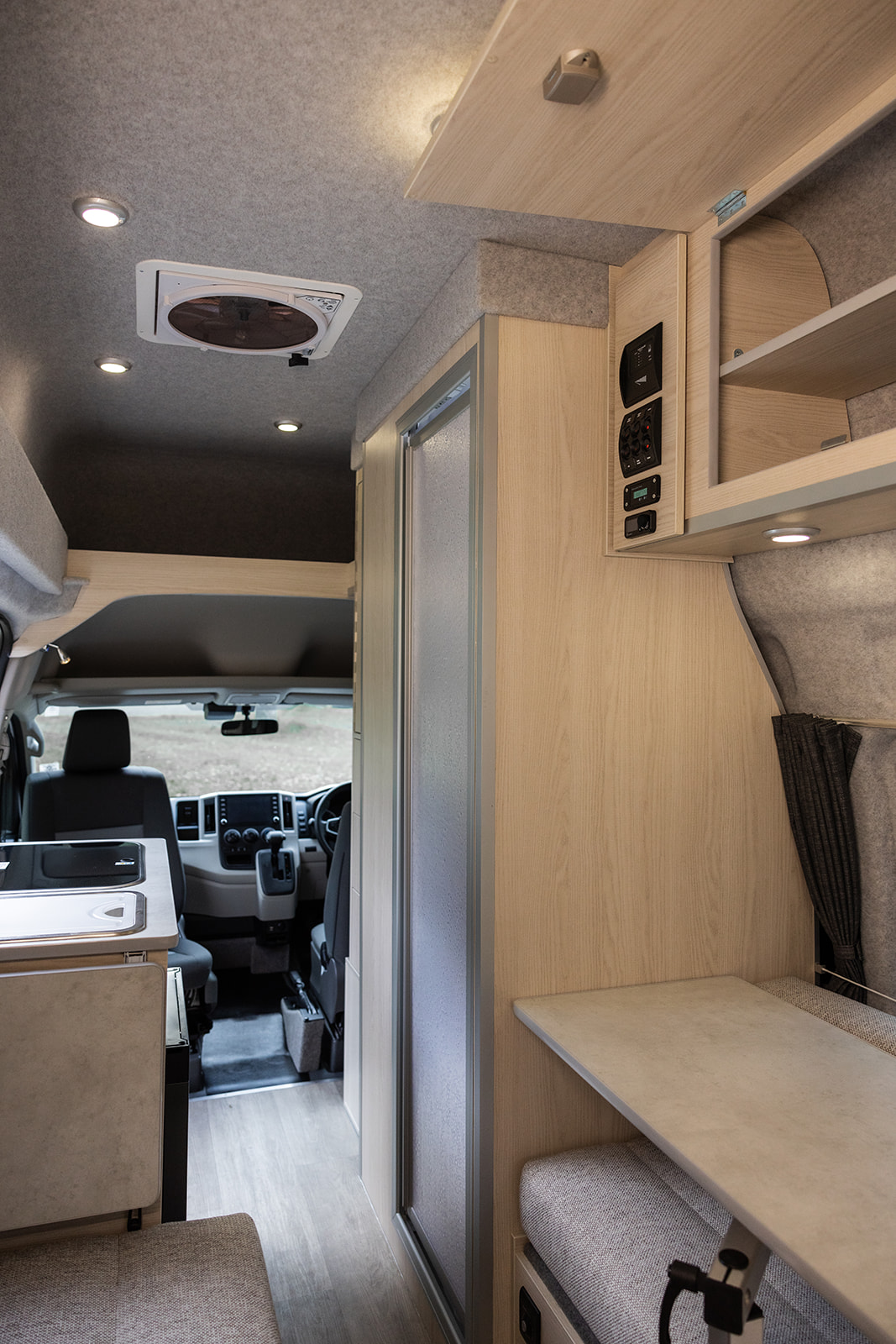

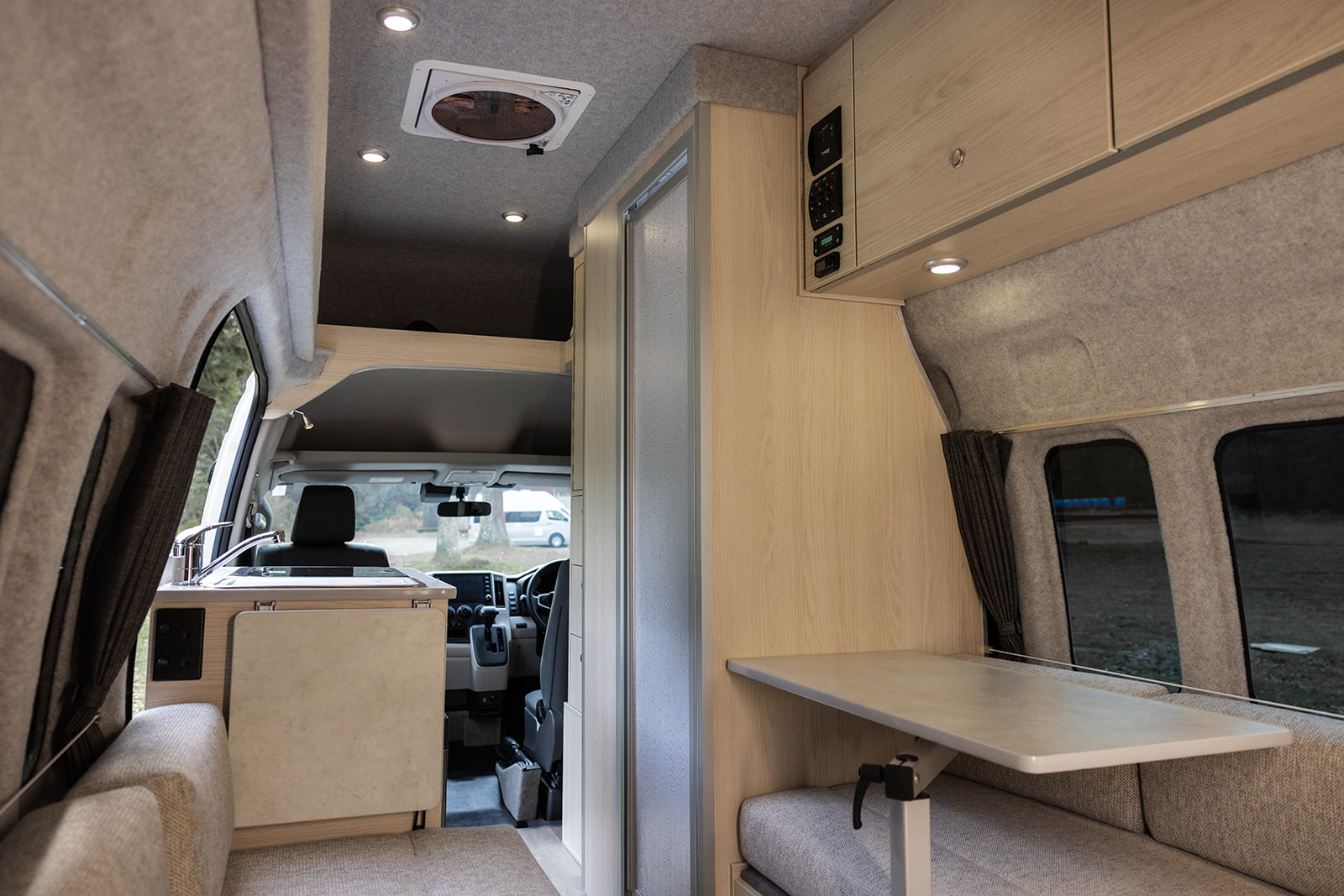

Gen 6 Shower Inside View
SPECIFICATIONS
  • External Length: 5900mm
  • External Width: 1980mm
  • External Height: 2850mm (includes fibreglass roof)
  • Internal Width: 1770mm
  • Internal Height: 2030mm

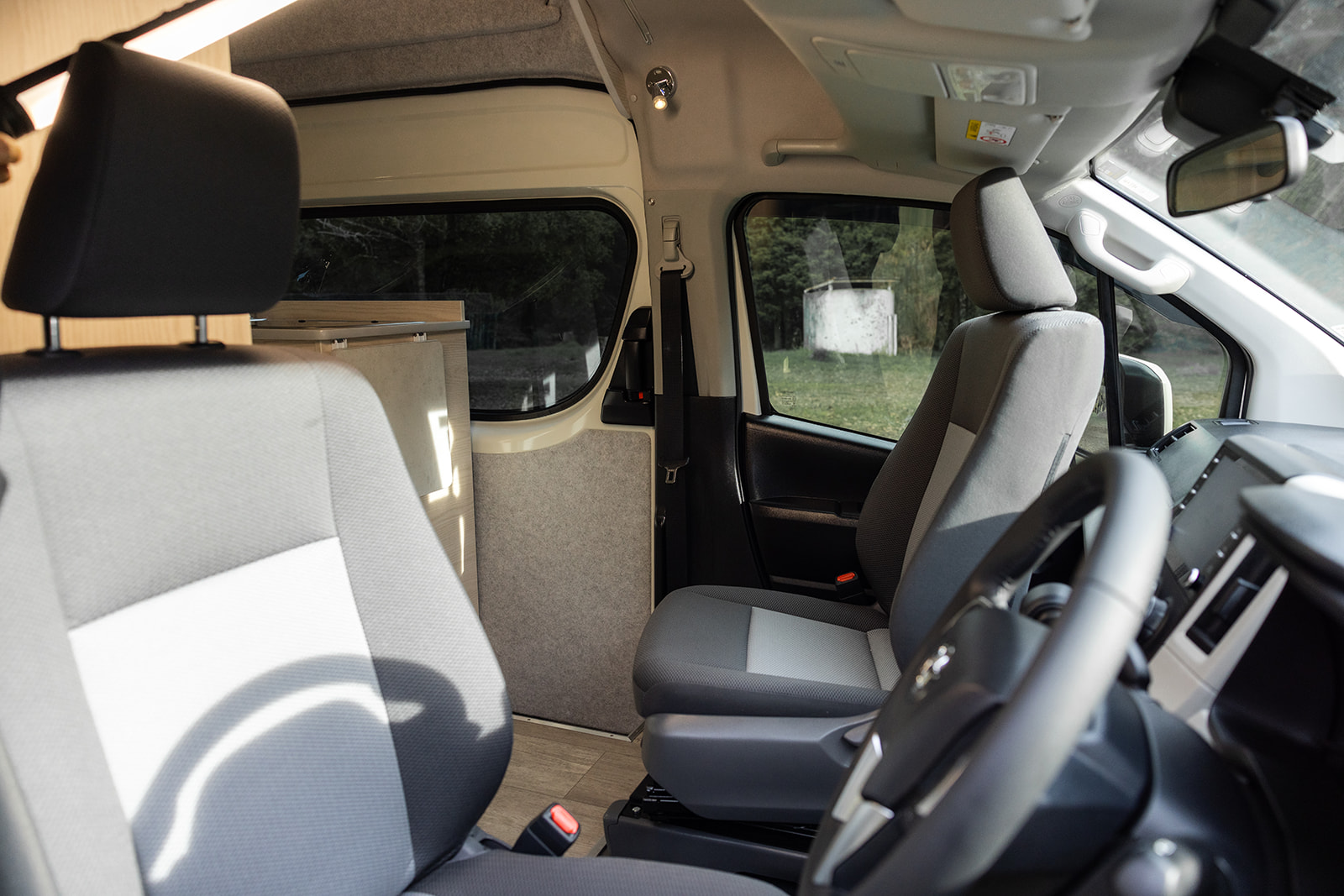

  • Walk through to front seats with rotating front passenger seat

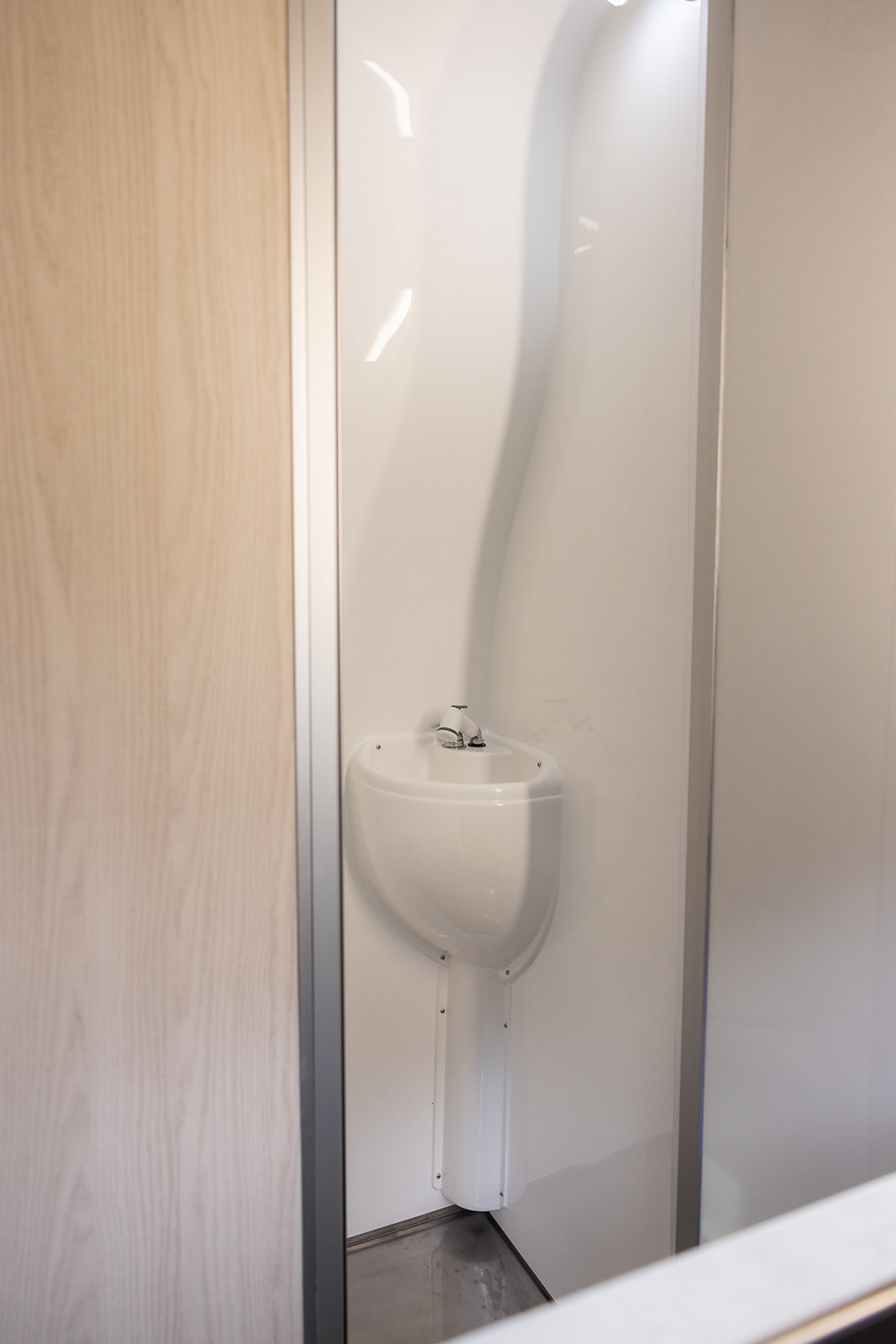

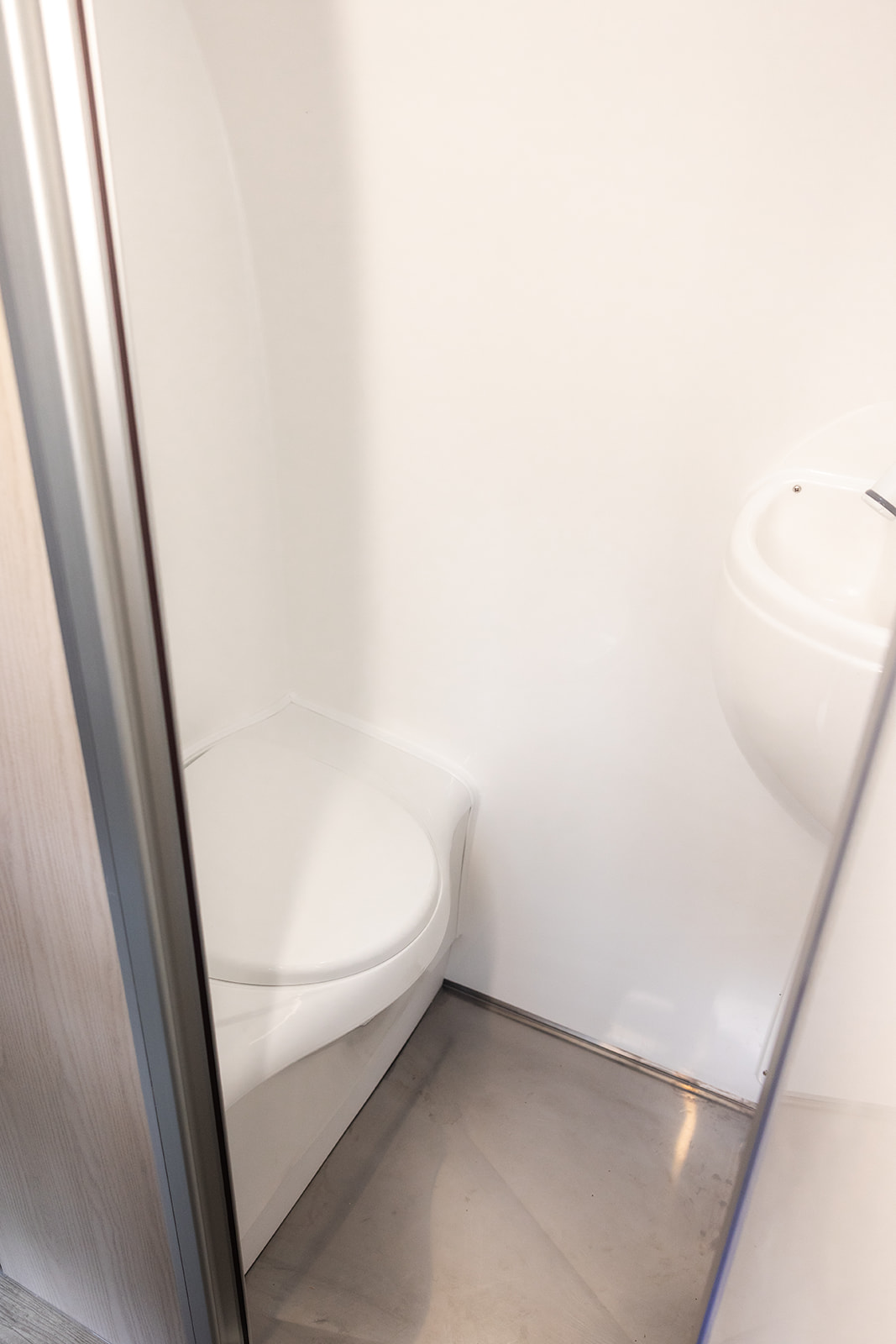

  • Shower module with cassette toilet, hand basin, hot and cold-water tap

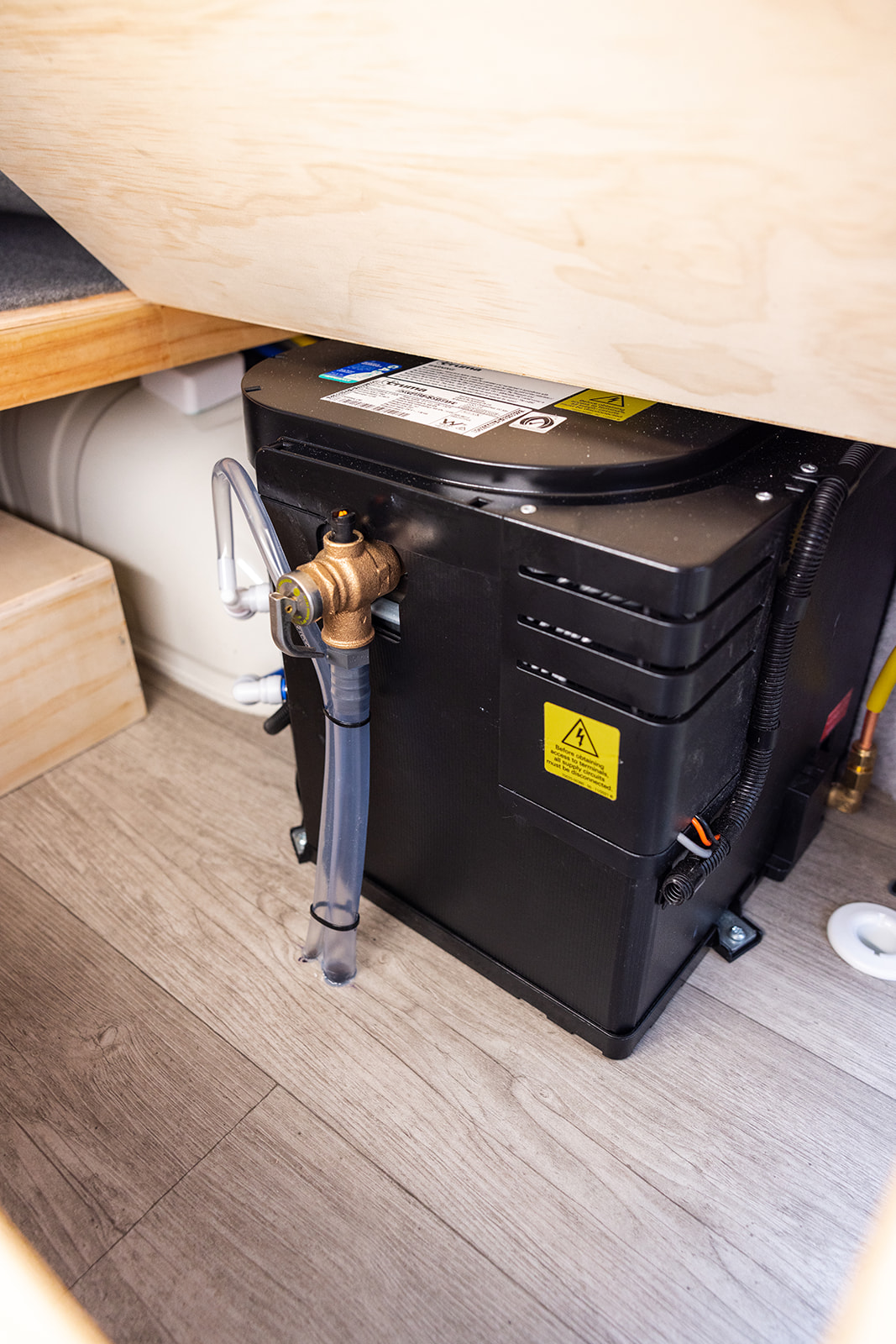

  • Trumma 14L hot water unit 2-way LPG gas or 240v

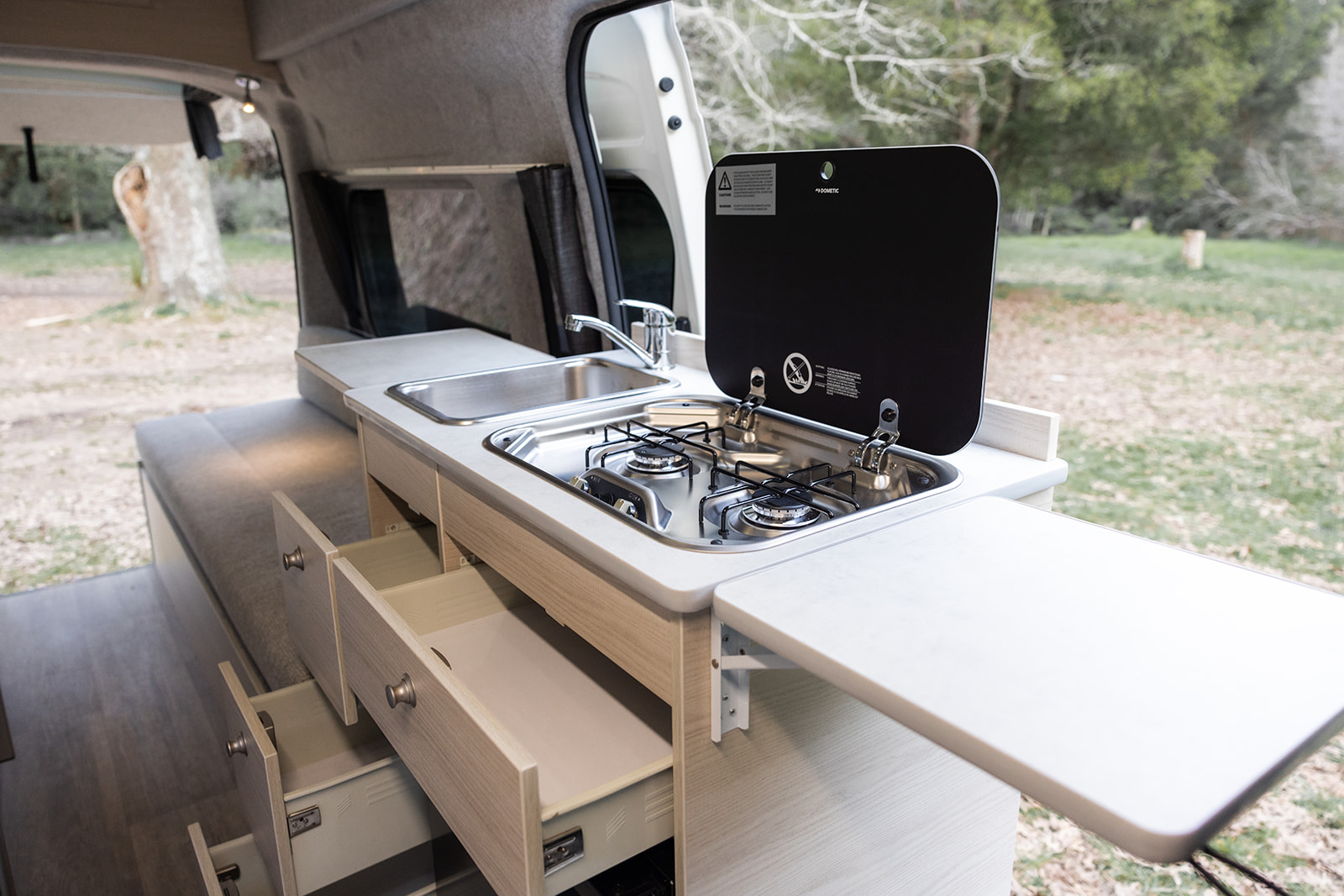

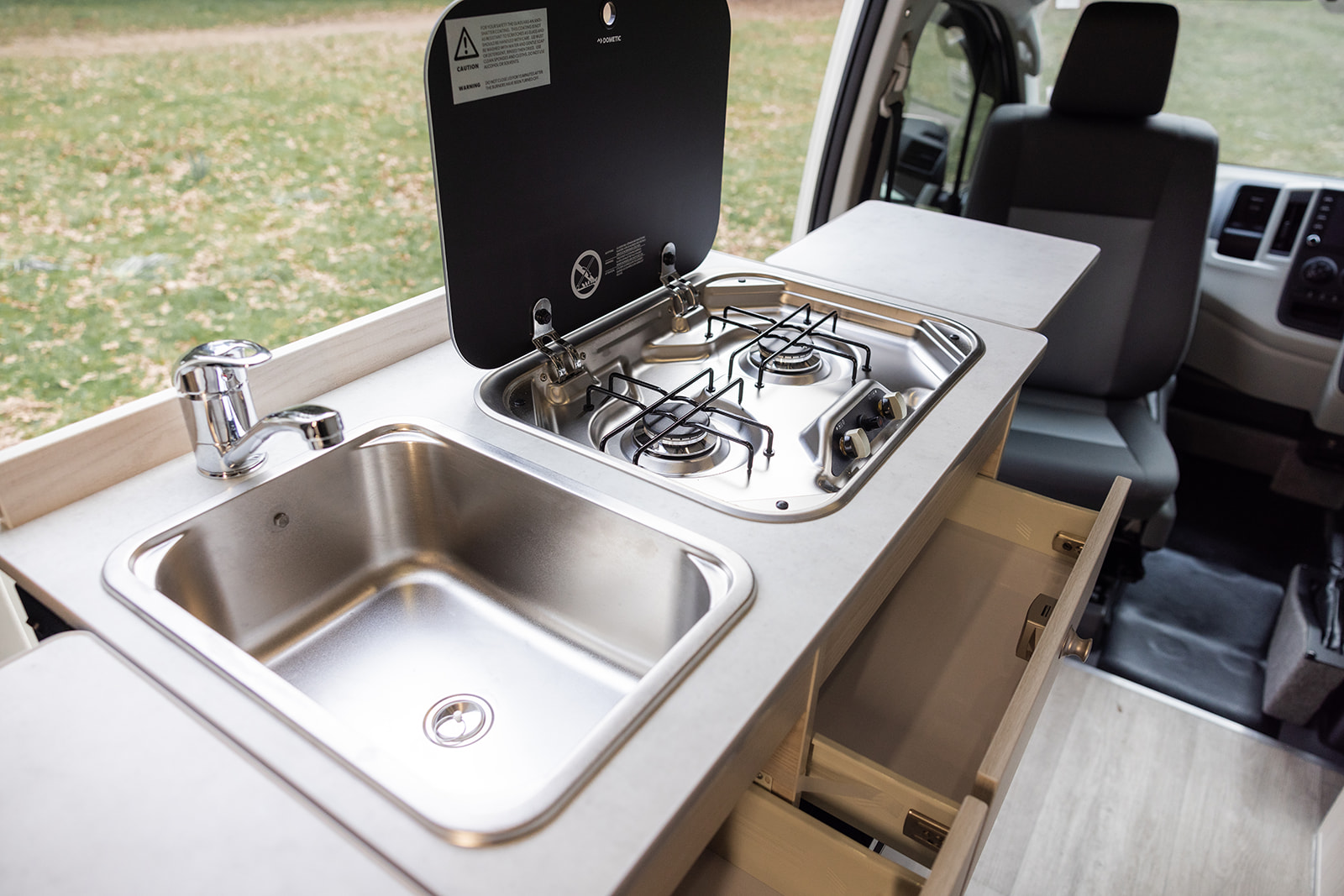

  • Sink with hot and cold-water tap and chopping board
  • Flip-up bench extensions on either side of the kitchen unit
  • Dometic hob 2 burner gas with glass opening lid

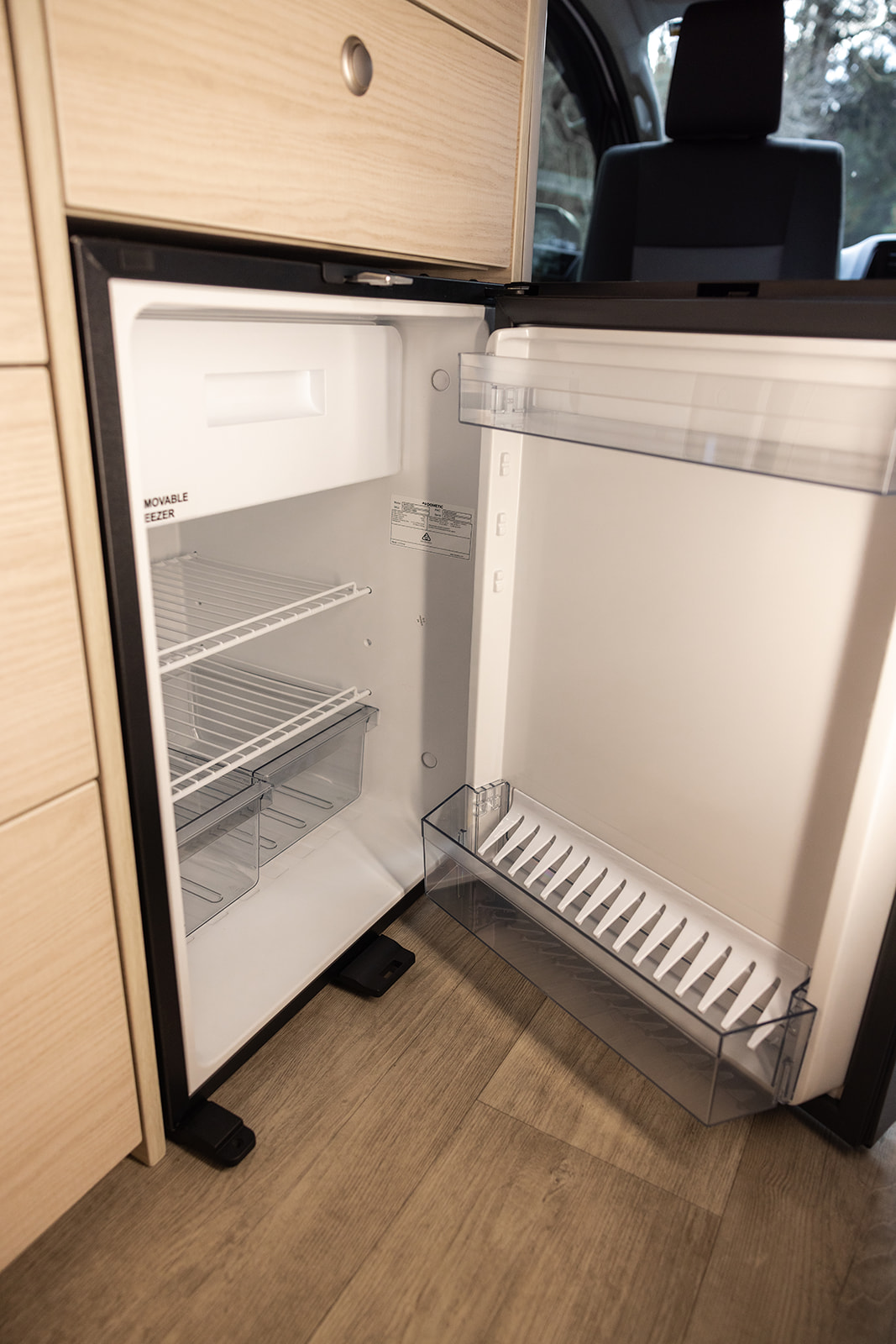

  • Dometic fridge 80 litre 2-way 240v/12v

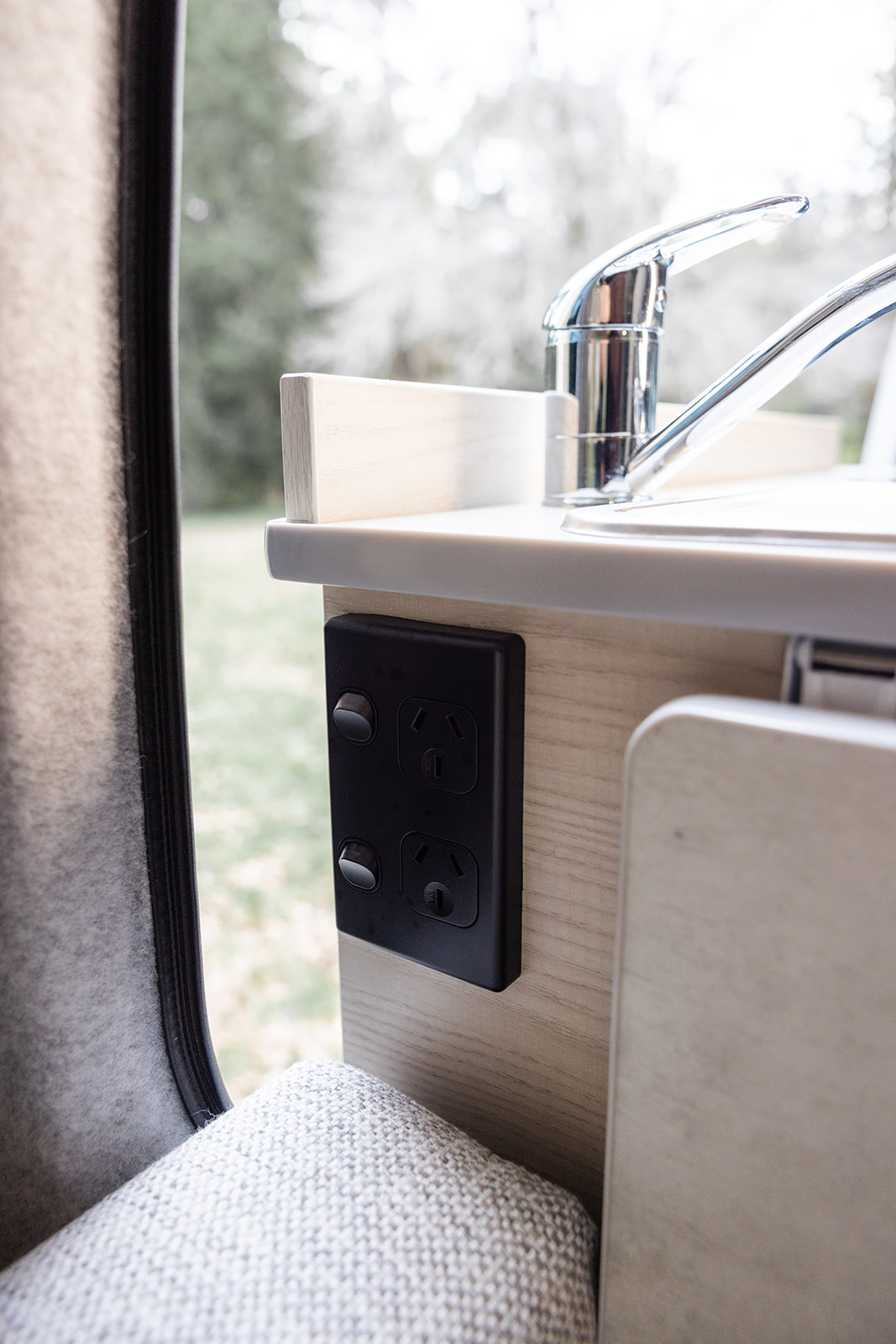

  • Double 240v power point
  • Redarc 200watt solar setup
  • 1 x Lithium LiFePo4 Battery with 110Ah
  • Redarc 25Amp charging system, with van DC/DC and solar for house batteries
  • 240v Mains charging system for house batteries
  • 240v Mains connection with 10-meter power cord
  • Twin USB outlet
  • 12v LED lights throughout

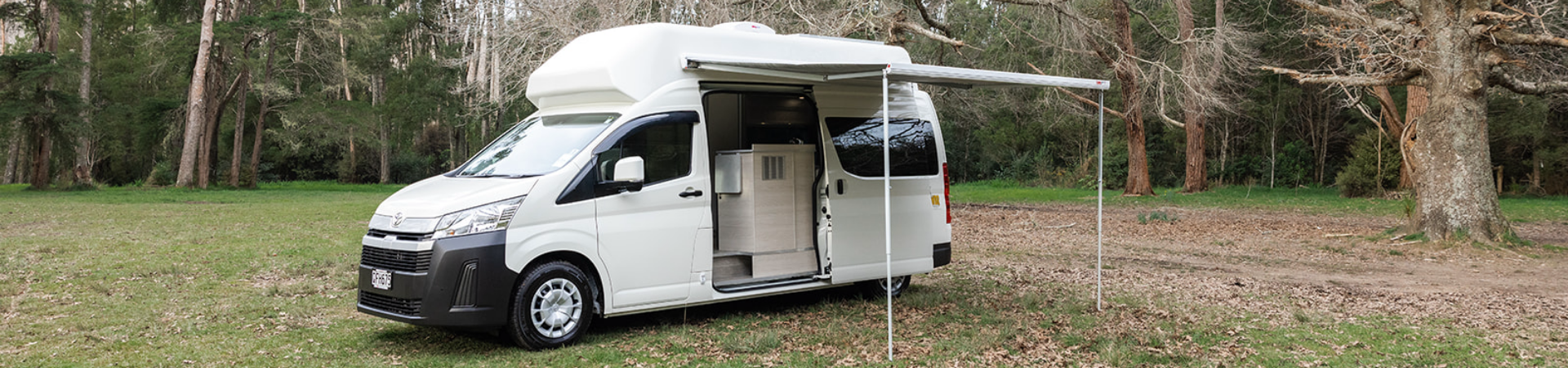

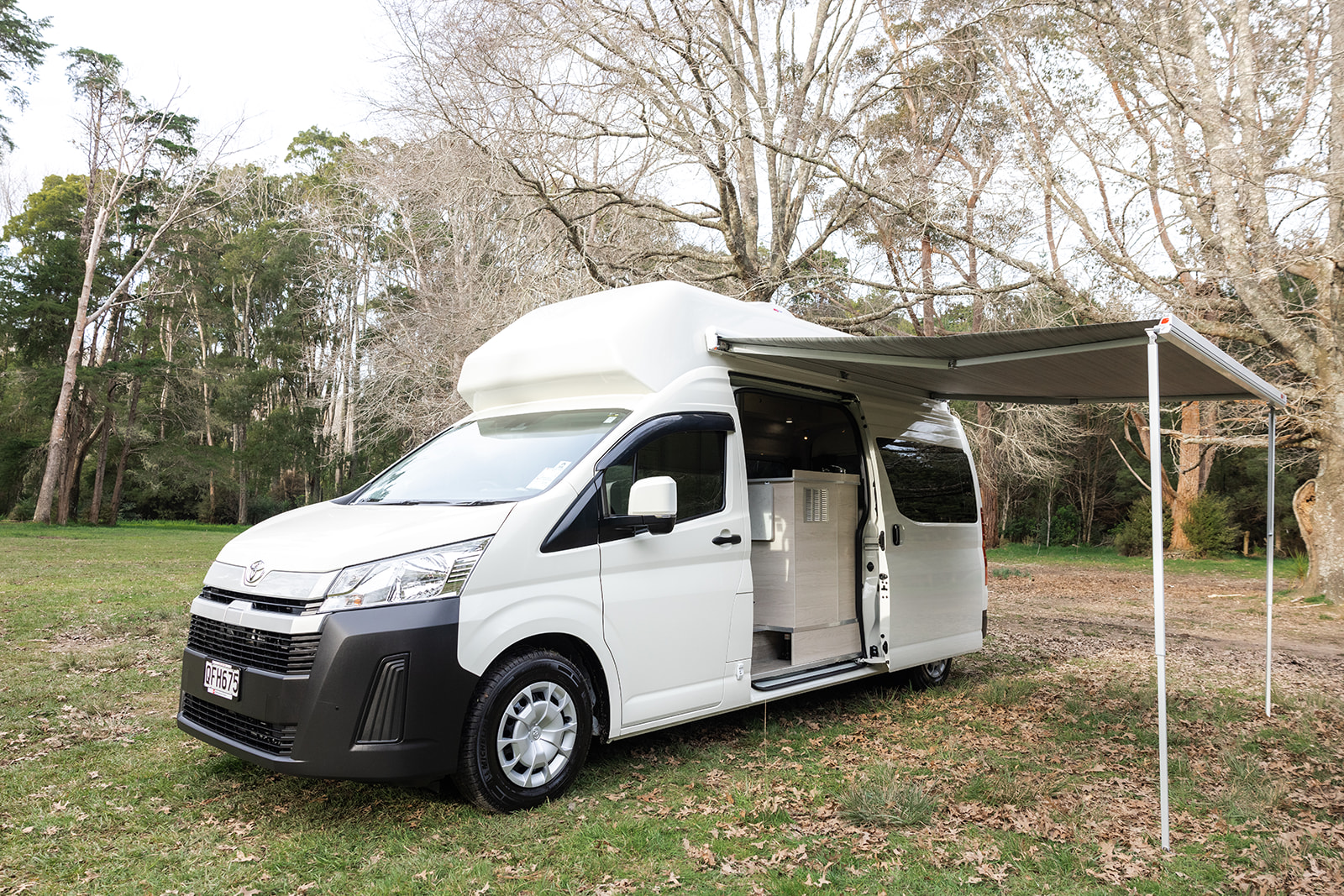

  • 3m Fiamma awning
  • Roof vent with night blind and fly screen
  • Two 4kg gas bottles
  • 12v pressure water pump

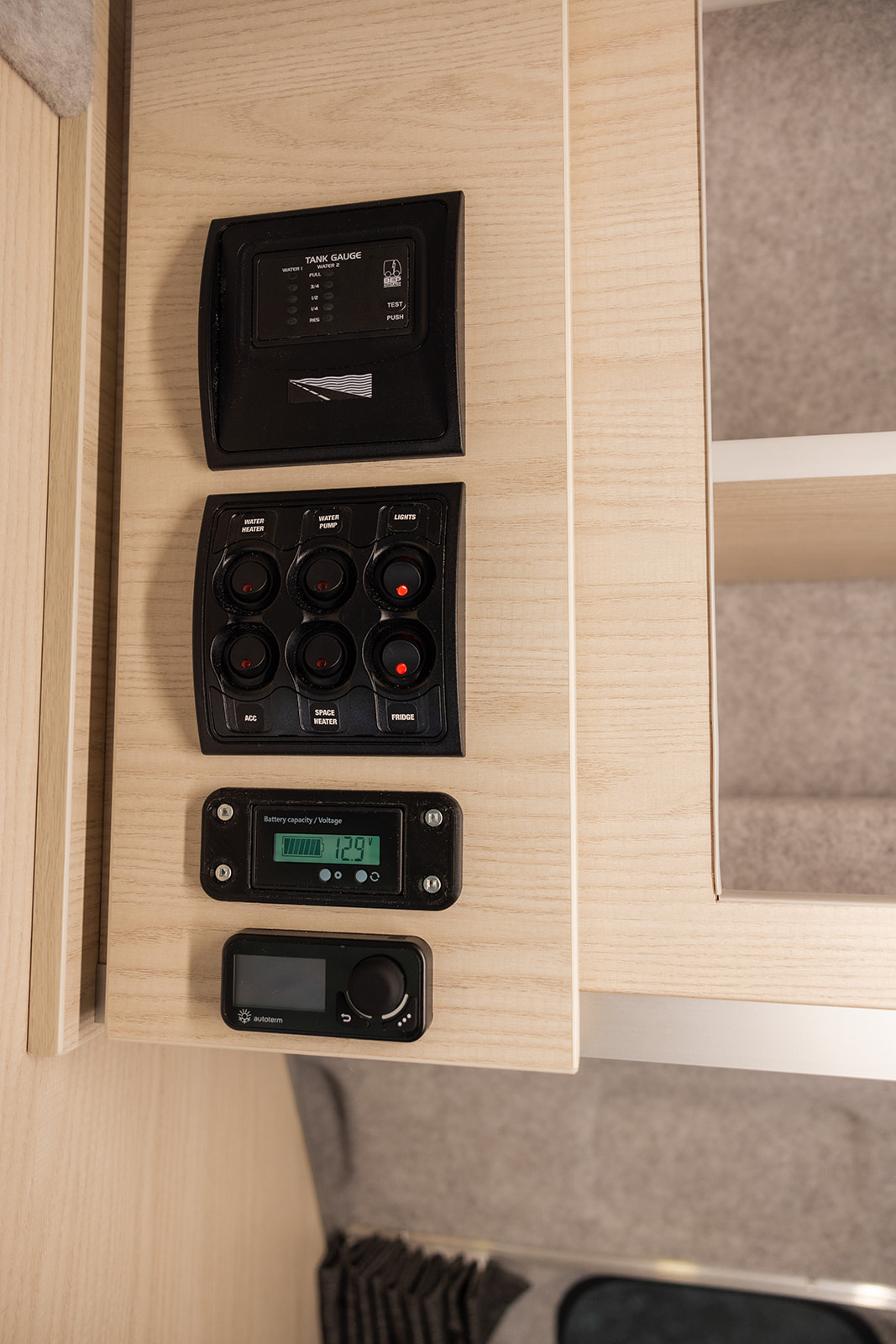

  • Water and waste tank monitors
  • 85 Litre water and 85 Litre waste tanks mounted under van

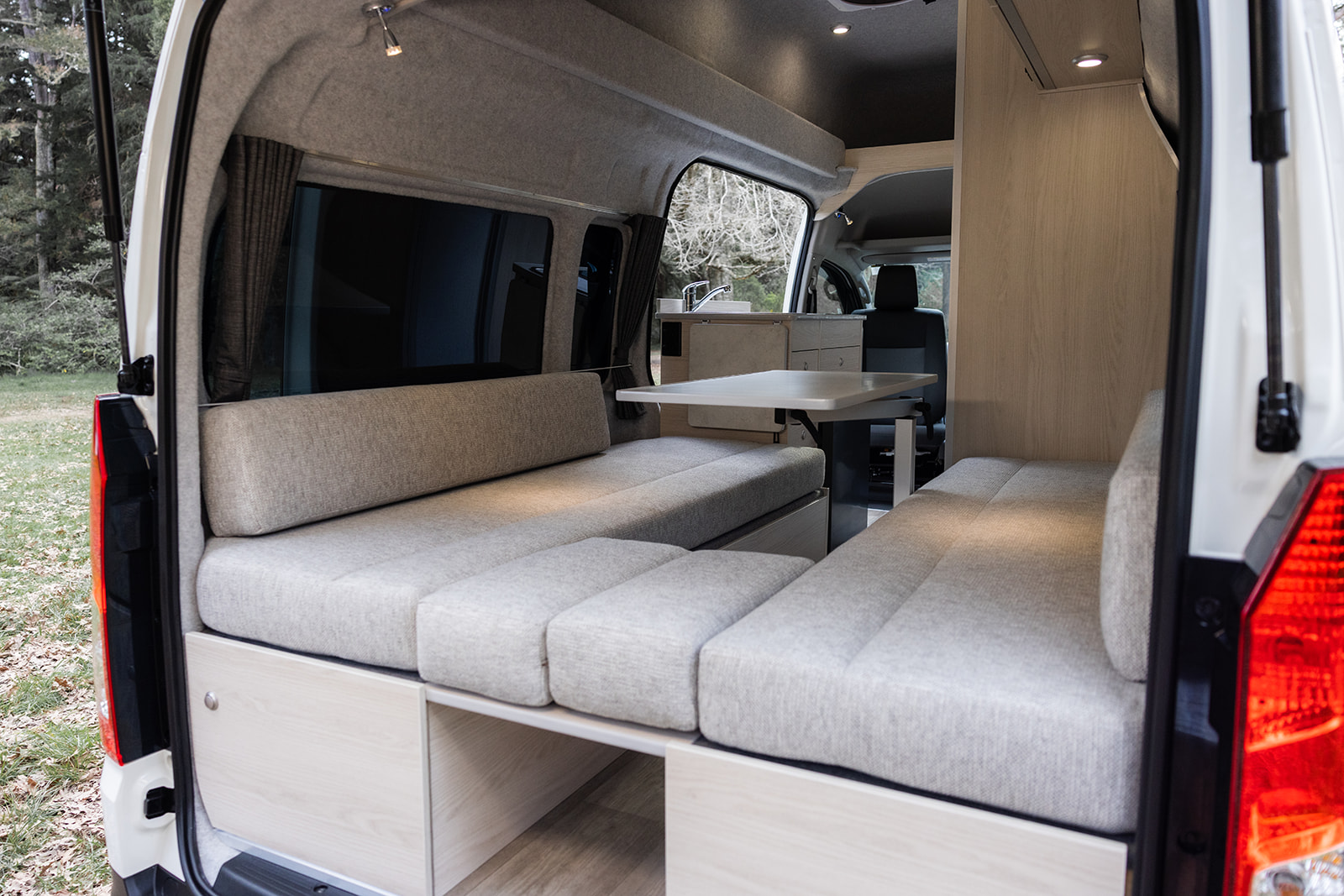

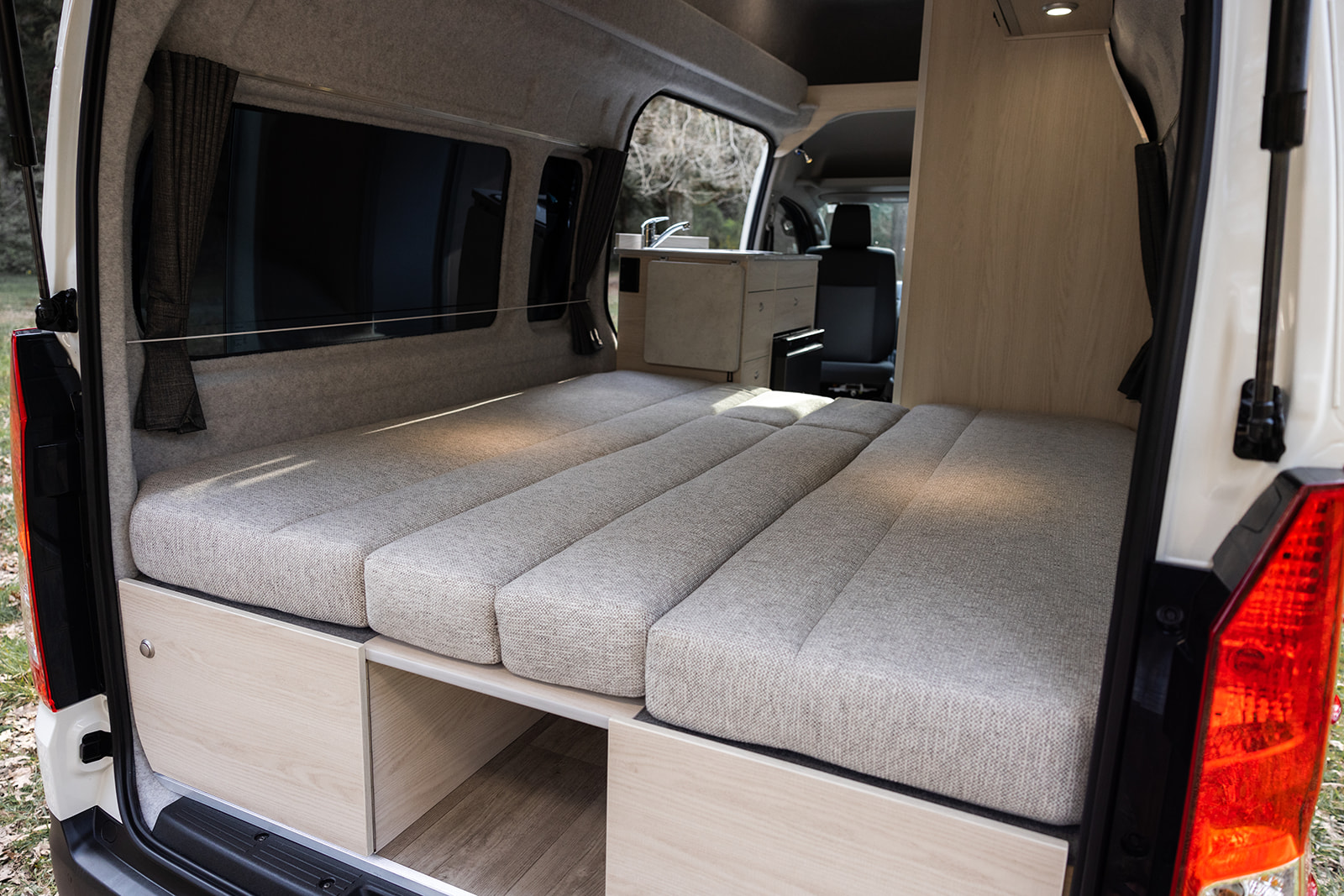

  • Bed measurements, 2 x 1900 x 670 singles or 1400 x 1770 sideways double or 1900 x 1770m long ways Queen
  • Dunlop foam squabs
  • Thermal backed curtains
  • Interior walls lined with marine hull-liner
  • Tinted windows
  • Includes all certificates, Gas, Electrics, Self-containment, and Engineering
OPTIONAL EXTRAS (AT ADDITIONAL COST)
We provide additional features to the standard builds upon request. Some of these include:
  • Cabin Heater
  • Tow Bar
  • TV/Satellite Dish
  • Fly Screens
  • Rear sliding window
  • Electric Roof Vent
  • Inverter
